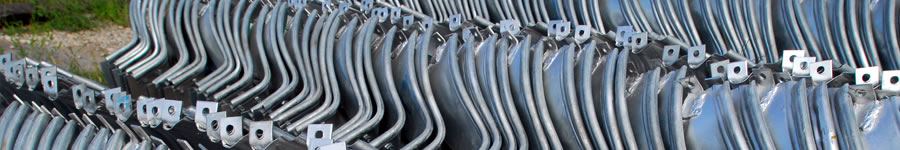

Standard Flared End Sections

Back to Our Products





J&J Drainage Products Co.® offers the widest, most complete selection of end sections in North America.

Our standard flared end sections are not only long-lasting and easy to maintain, they are up to standards – made from certified materials meeting AASHTO and ASTM standards ... meeting Buy American Act criteria ... and federal and state highway agency requirements for safety and hydraulic efficiency.



Application:

  • Corrugated steel pipe
  • Corrugated and smooth plastic pipe
  • Concrete pipe
  • Available as twins, triples and quads for multiple-pipe installations

Back to top





Material:

  • Galvanized steel ... the industry standard
  • Aluminized steel ... an aluminum alloy coating on steel ... with a lifespan of more than 100 years, exceeding most Department of Transportation standards
  • Aluminum ... offering longer service life through greater pH range

Back to top





Size:

  • Round: 6” to 96” diameter
  • Arched: Span and rise of 17”x13” to 112”x75”

J&J is the only company offering 6-, 8- and 10-inch end sections!

Back to top





Slope:

  • Round: 1.5:1 to 2.5:1
  • Arched: 1.5:1 to 2.5:1



See complete information on Standard Flared End Sections
End sections for round and arched pipe (pdf)
Federal Highway Administration end sections for round and arched pipe (pdf)
End sections for HDPE pipe (pdf)

Back to top





End Section Connectors

  • Type 2 short rods
  • Side D-lugs
  • Type 1 straps and bolts
  • Full-circle rods with silo lugs
  • Toe plate extensions
  • Indiana anchors

 Back to top





Accessories

A smooth tapered sleeve, available in galvanized and aluminized steel, can be used to connect concrete and plastic pipe to a metal end section. One end of the sleeve wedges snugly into the pipe, and the other attaches to the end section using connectors. The sleeve ensures a consistent flow-line connection.
Sleeve detail (pdf)

Trash guards provide protection against debris for your end sections. They can be attached to any standard end section. Standard thickness is .079" and heavy duty is available in .365."

Optional products that can be attached to any end section include a toe plate extension, Indiana toe plate extension and dimpled adaptor band.
See toe plate extension detail (pdf)



Now read about our culvert accessories and hardware.

Back to top





Benefits:

  • Efficient design
    The flare shape increases hydraulic efficiency at the inlets end,
     reducing the entrance loss coefficients for corrugated pipe or pipe arch from 0.9 to 0.5.
  • Easy attachment
    End sections can be attached using only standard wrenches.
  • Long life
    End section materials � galvanized and aluminized steel and aluminum � give our products a long life span. And by using rods or straps and bolts, end sections can be salvaged if the culvert is moved, replaced or lengthened.
  • Attractive appearance
    Matching the fill slopes, the end section “finishes” the appearance of the culvert and keeps grass, weeds and debris from the culvert opening. It also increases flow characteristics, preventing scouring and undercutting.
  • Easy maintenance
    Mower blades and sickle bars pass harmlessly over the end section that is installed flush with the slope. During snow removal there are no hidden obstructions to slow the job or damage the culvert or maintenance equipment.
  • Cost effective
    Our installed standard flared end sections (in galvanized and aluminized steel or aluminum) are less costly than plastic and concrete end sections or headwalls.
  • Uniform fit
    Our custom-designed, computerized Trumpf machine ensures an accurate, precision fit time and time again.

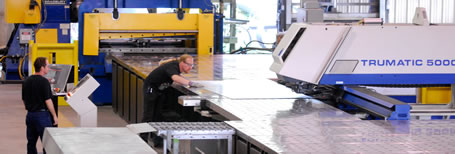

The J&J Drainage Products Trumpf machine ensures computerized consistency in cutting materials.



Call today and inquire about the largest selection of end sections in North America.
